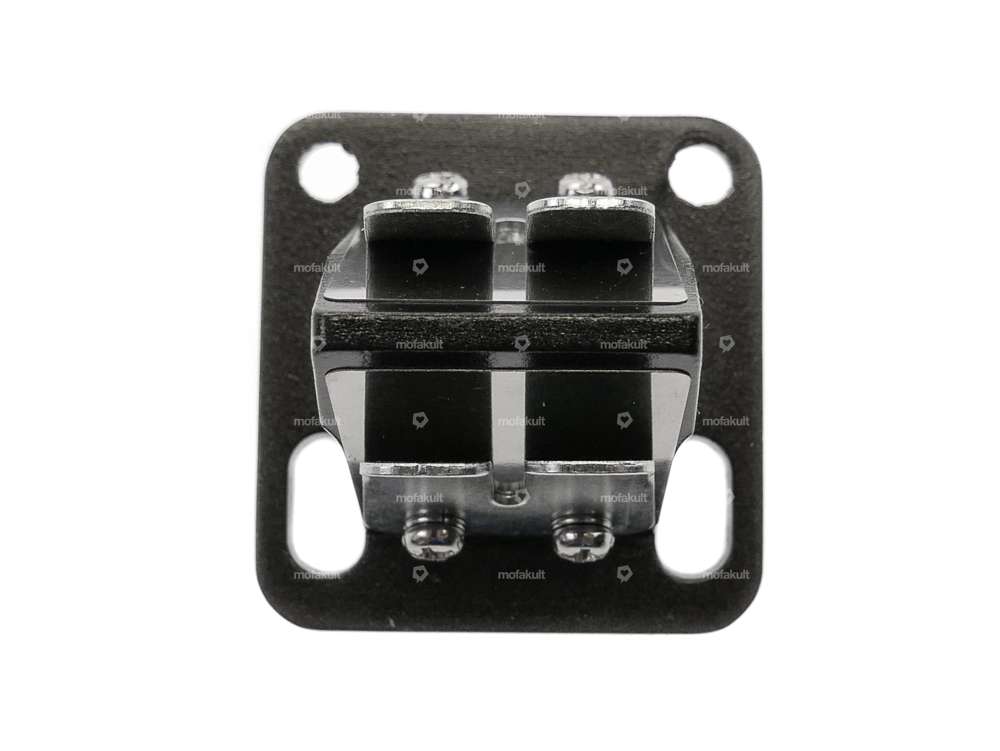

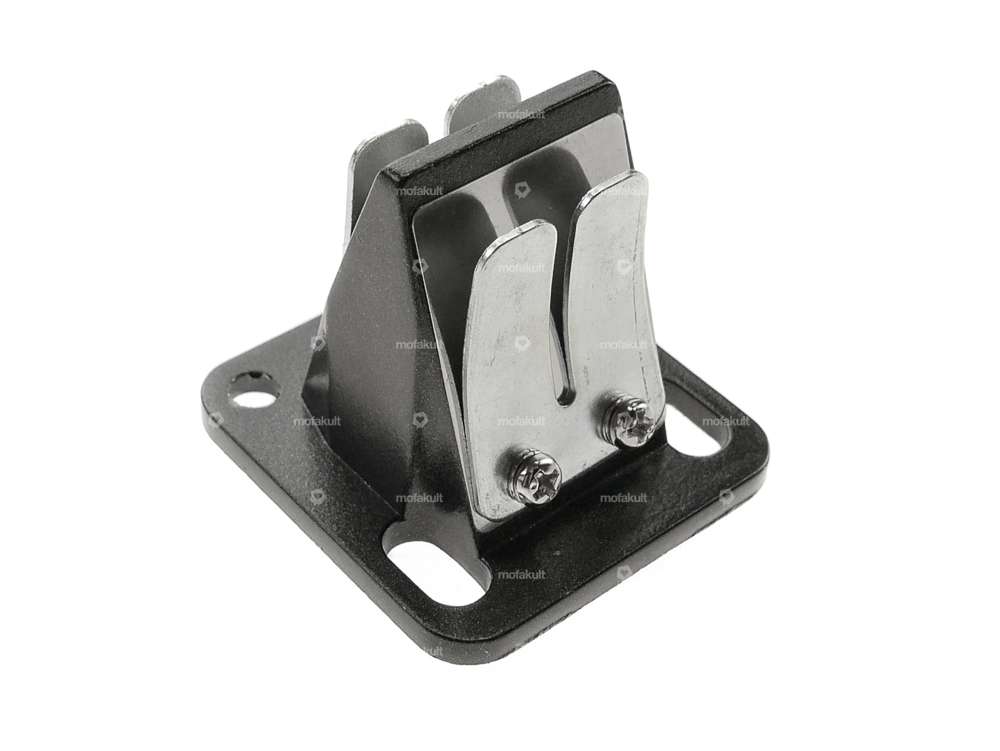

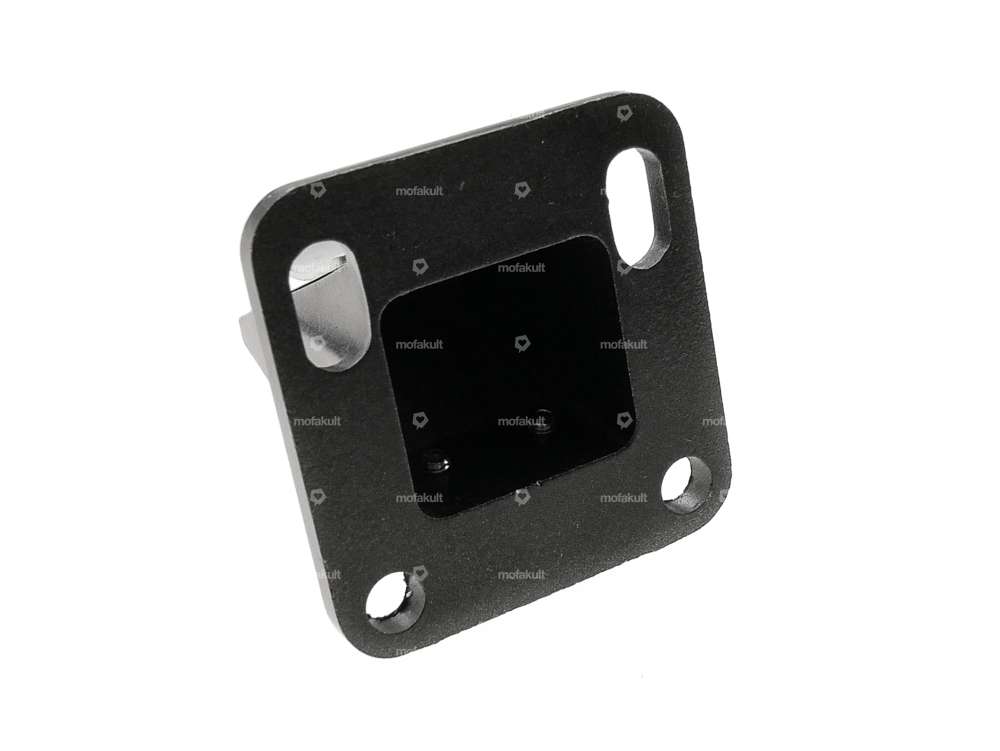

Athena 2-folding diaphragm Puch / Sachs

Athena 45 mm cylinder kit incl. diaphragm | Puch

Nominal diameter: 45 mm · Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 47.8 mm · Ø outlet inside: 24 mm · Ø Inlet inside: 20.5 mm · Inlet window: 22 x 27.5 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31.5 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: No · Area of application: Tuning

Athena 38 mm cylinder kit incl. diaphragm | Puch

Nominal diameter: 38 mm · Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Thread inlet: M5x0.8 (standard thread) · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Camouflaged: No · Area of application: Tuning

Athena 48 mm cylinder kit incl. diaphragm | Sachs (504), 505, 508, 535

Nominal diameter: 48 mm · Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.8 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 19.4 mm · Ø Inlet inside: 14.7 mm · Ø Inlet inside: 17.8 mm · Inlet window: 31.9 x 36.2 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 32.5 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 56/60 x 56 · Decompressor: M10x1.5 · Camouflaged: No · Area of application: Tuning

swiing® revival stud bolt inlet/outlet M6 x 30 (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Thread length: 12 mm · Strength class: 10.9 · Thread type: M6x1 (standard thread) · Total length: 30 mm

Athena gasket set 45 mm AJH diaphragm

Manufacturer: Athena · Number of components: 5 pcs · Ø cylinder: 45 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm / 60 x 40 mm · Area of application: Tuning

Petrol hose clamp (Ø 8 - 9.3 mm) Standard

Outer width: 5.3 mm · Material: Spring steel · Surface: galvanized (blue) · Color: silver · Ø outside: 9.5 mm · Ø inside: 7.5 mm · Clamping range: 7.6 - 9.3 mm · Mounting type: Plug connection clamped

swiing® revival nozzle set M5 (70 - 92) Dell'Orto SHA, PHBG

Total length: 8 mm · Manufacturer: swiing® revival parts · Quantity: 10 pcs · Component group Carburetor: Spraying · Material: Brass · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Drive: Slot · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 70 · Nozzle size: 72 · Nozzle size: 75 · Nozzle size: 78 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 85 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92

swiing® revival nozzle set M5 (92 - 110) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98 · Nozzle size: 100 · Nozzle size: 102 · Nozzle size: 104 · Nozzle size: 106 · Nozzle size: 108 · Nozzle size: 110 · Total length: 8 mm · Drive: Slot

Cable set cut with adjusting screws | Puch Maxi

Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Nipple shape: Barrel (transverse) · Nipple shape: Cylinder · Nipple shape: Pears · Total length: 1200 mm · Total length: 1250 mm · Total length: 1450 mm · Total length: 1830 mm · Manufacturer: Made in Germany · Material: Brass · Material: Steel · Quantity: 4 pcs · Color: black · Outer shell length: 1120 mm · Outer shell length: 1150 mm · Outer shell length: 1740 mm

Athena piston 45 mm #A | Puch

Manufacturer: Athena · Nominal diameter: 45 mm · Ø outside piston (A): 44.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.4 mm · Curvature (D): 3.15 mm · Total piston height (E): 52.67 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Tolerance group: A · Weight piston kit: 98 g

Athena membrane seal set (2 pcs.)

Manufacturer: Athena · Material: Sealing paper · Hole pattern [mm]: 33 x 32 mm · Thickness: 0.5 mm · Mounting type: Screws · Number of fixing points: 4 pcs

swiing® ingenious piston 45 mm | Puch

Manufacturer: swiing® ingenious parts · Nominal diameter: 45 mm · Ø outside piston (A): 44.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.4 mm · Curvature (D): 4.6 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.9 mm · Weight piston kit: 91 g

NGK LB01F Spark plug cap / 1 kΩ suppressed

Manufacturer: NGK · Material: Hard plastic · Color: black · Ø cable: 7 mm · Ø cable: 8 mm · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Subcategory: Spark plug connector
