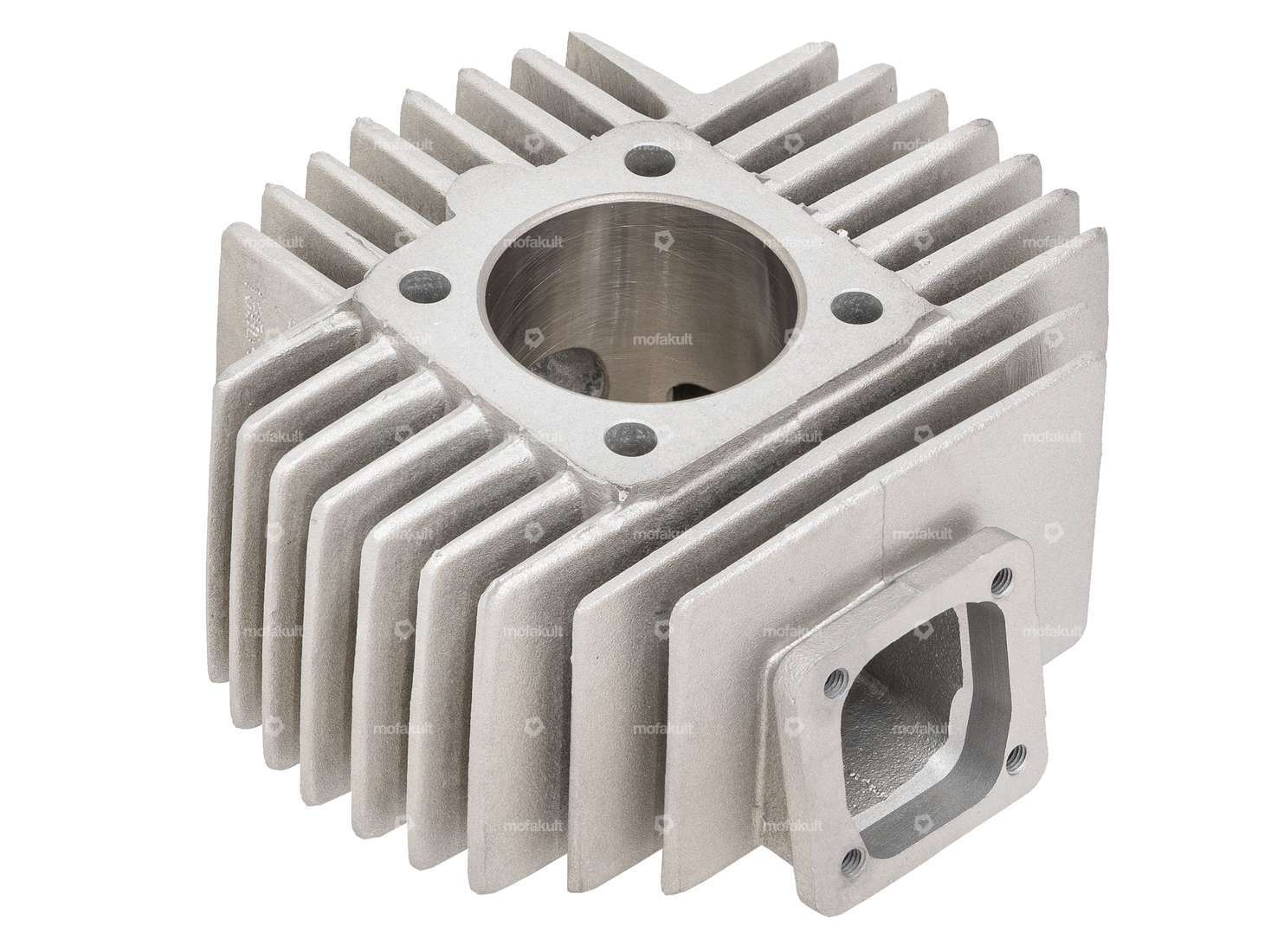

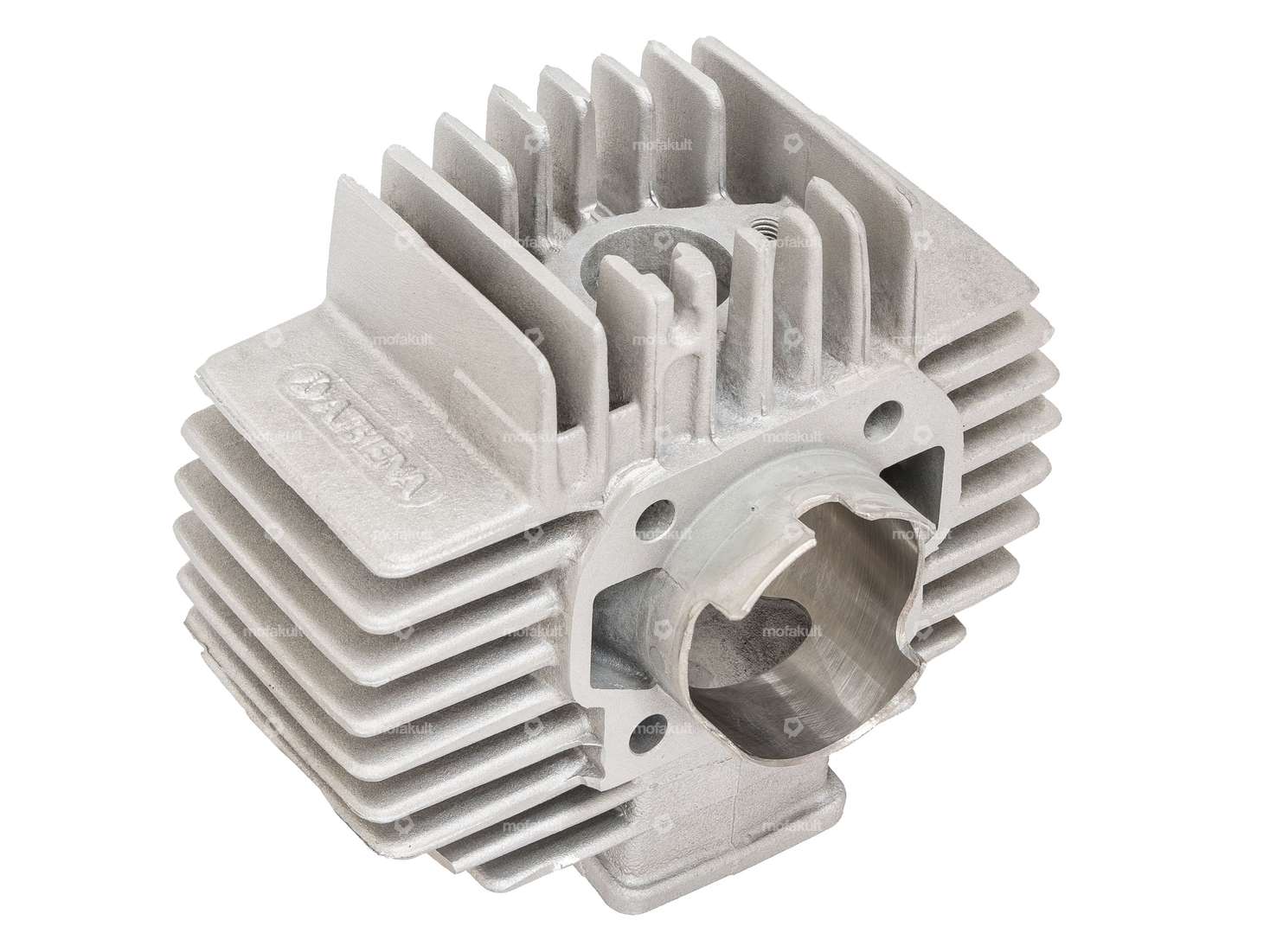

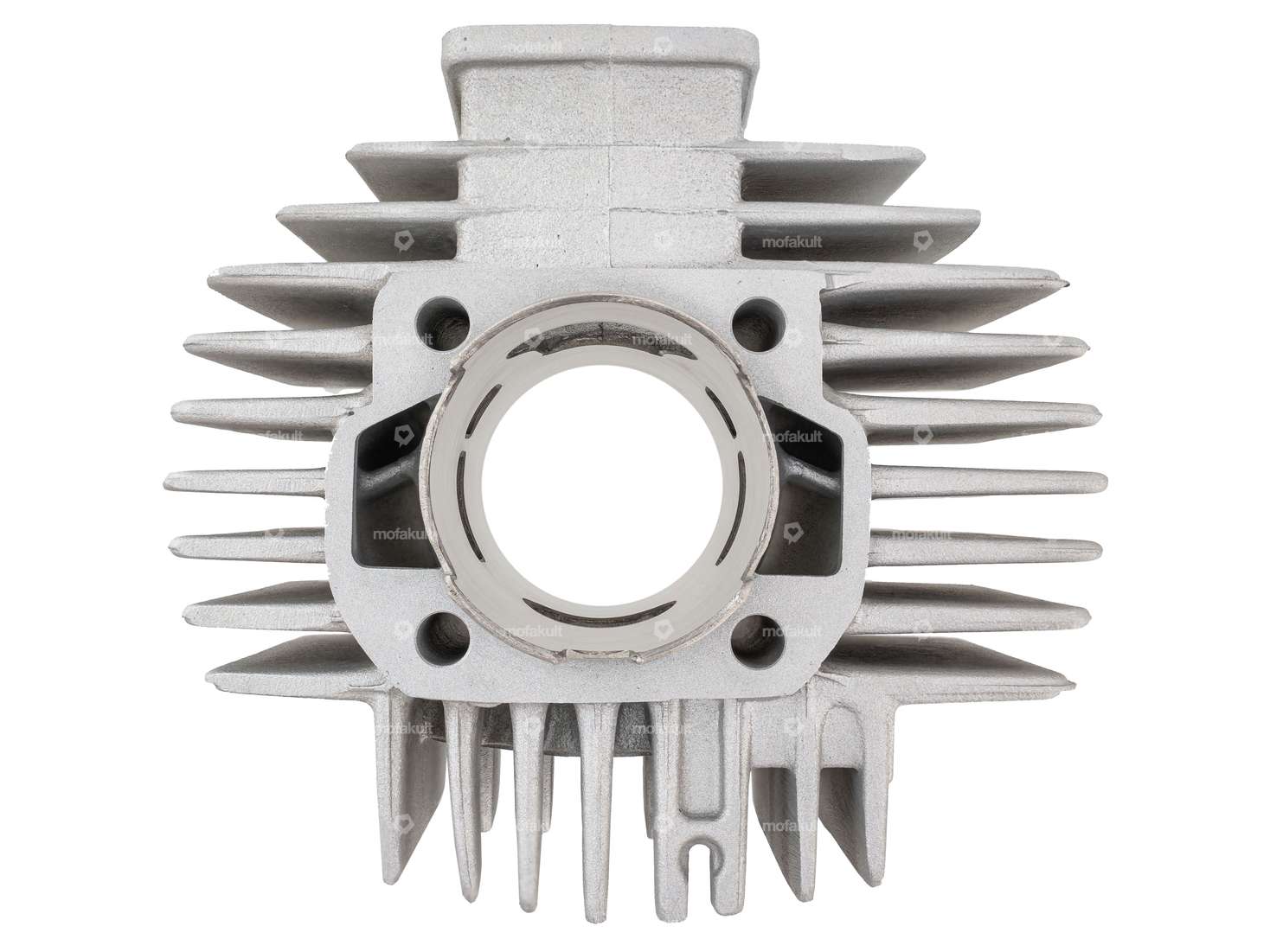

Powerful racing kit with 45 mm bore and reed valve intake suitable for various Puch mopeds and small motorcycles.
When using a larger carburetor and a racing exhaust, a power increase of up to 6 hp can be achieved.
The housing does not need to be spindled for use. However, the racing kit lock must be removed to use this cylinder.
| Manufacturer | Athena |
| Camouflaged | No |
| Surface | sandblasted |
| Displacement | 70 ccm |
| Material | Aluminum |
| Crankshaft stroke | 43 mm |
| Nominal diameter | 45 mm |
| Ø cylinder neck | 47.8 mm |
| Ø outlet inside | 24 mm |
| Ø Inlet inside | 20.5 mm |
| Hole spacing inlet | 31.5 mm |
| Inlet window | 22 x 27.5 |
| Hole pattern [mm] | 44 x 44 |
| Thread inlet | M5x0.8 (standard thread) |
| Number of fixing points | 4 pcs |
| Ø piston pin (B) | 12 mm |
| Decompressor | No |
| Hole spacing outlet | 42 mm |
| Outlet type | straight |
| Thread outlet | M6x1 (standard thread) |
| Area of application | Tuning |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
