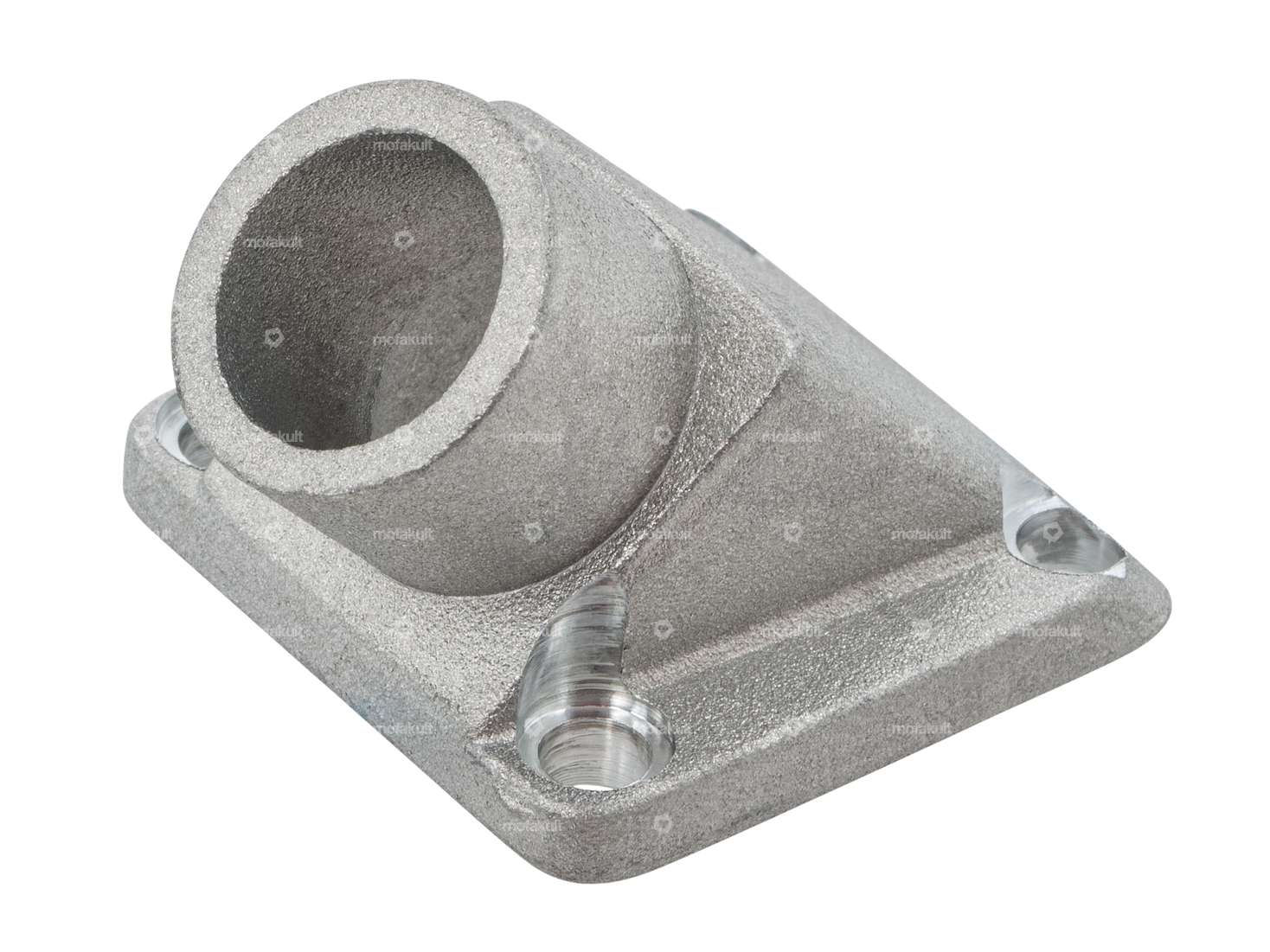

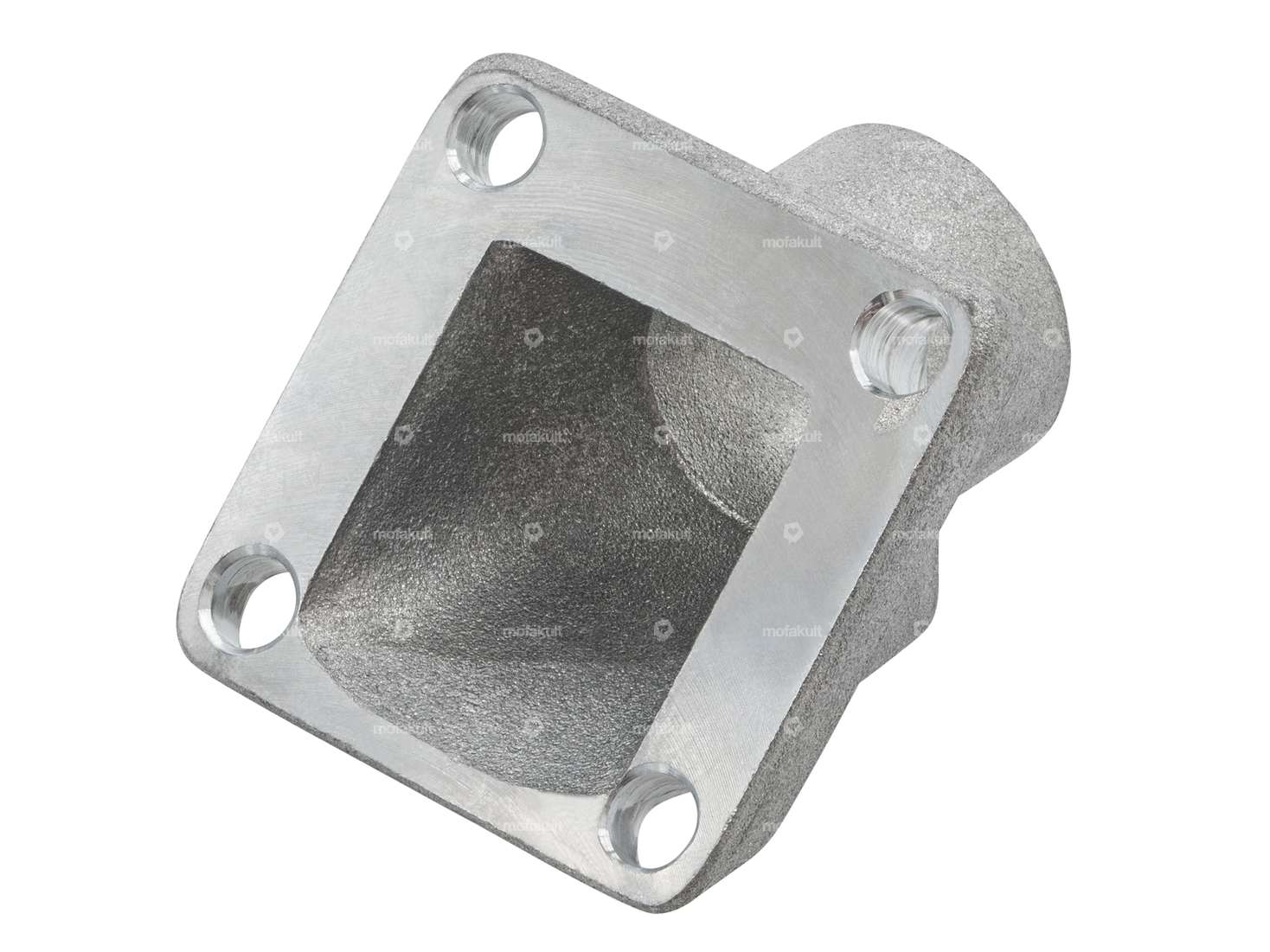

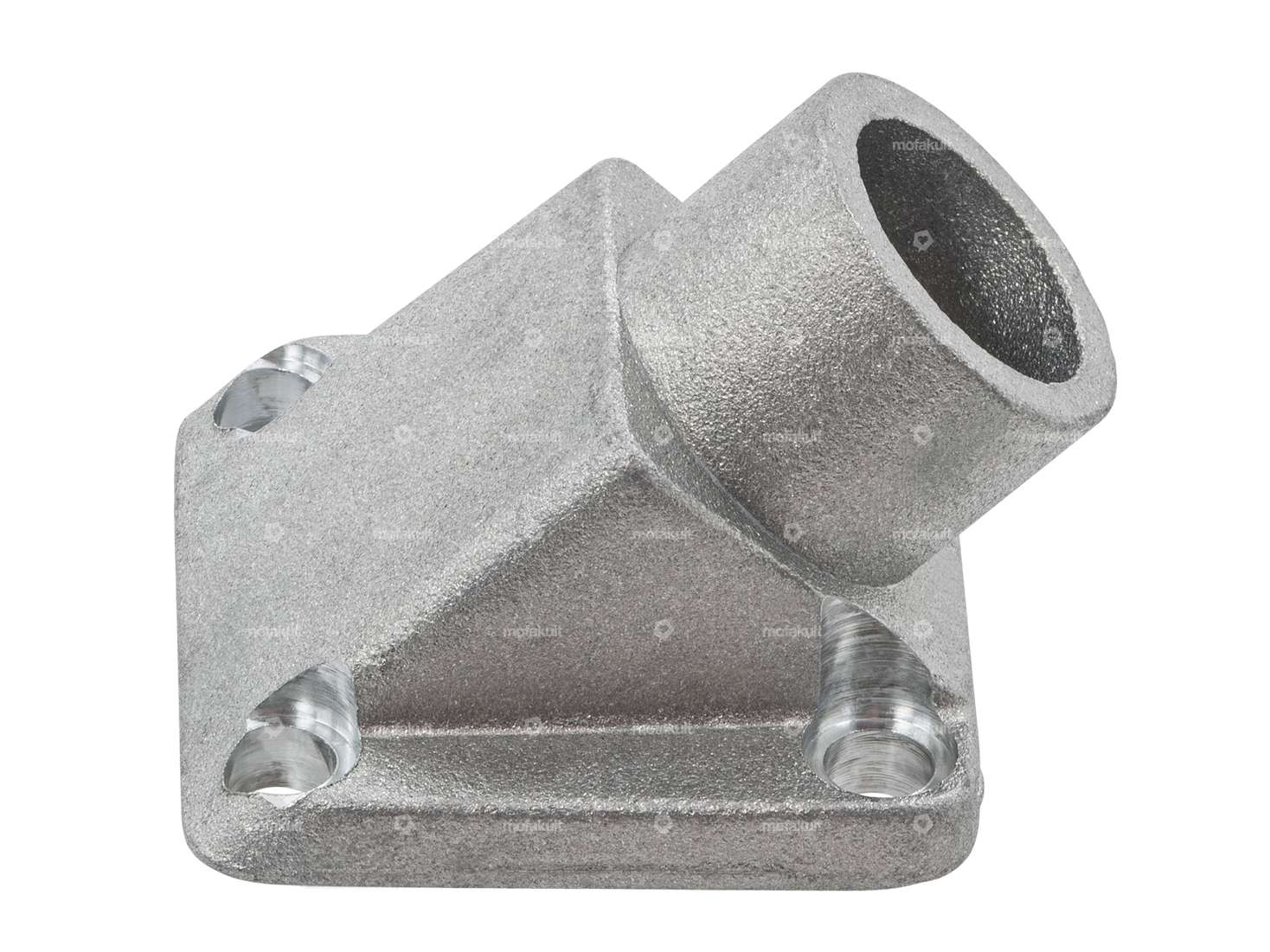

Athena intake manifold 18 mm | Puch / Sachs

Athena 45 mm cylinder kit incl. diaphragm | Puch

Nominal diameter: 45 mm · Manufacturer: Athena · Camouflaged: No · Area of application: Tuning · Material: Aluminum · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 47.8 mm · Ø outlet inside: 24 mm · Ø Inlet inside: 20.5 mm · Inlet window: 22 x 27.5 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31.5 mm · Decompressor: No · Ø piston pin (B): 12 mm · Number of fixing points: 4 pcs · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44

Athena 38 mm cylinder kit incl. diaphragm | Puch

Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 50 ccm · Nominal diameter: 38 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Thread inlet: M5x0.8 (standard thread) · Area of application: Tuning · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: No

Athena 48 mm cylinder kit incl. diaphragm | Sachs (504), 505, 508

Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Crankshaft stroke: 44 mm · Nominal diameter: 48 mm · Ø cylinder neck: 51.8 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 19.4 mm · Ø Inlet inside: 14.7 mm · Ø Inlet inside: 17.8 mm · Ø piston pin (B): 12 mm · Inlet window: 31.9 x 36.2 · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Hole spacing inlet: 32.5 mm · Outlet type: clamped · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Hole pattern [mm]: 56/60 x 56 · Decompressor: M10x1.5 · Camouflaged: No

Wippermann drive chain No.18 (double reinforced)

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Ø Pin: 4.15 mm · Manufacturer: Wippermann · Material: Steel · Surface: blank / oiled · Color: gray · Number of chain links: 114 pcs · Rolling circumference: 1448 mm · Chain lock type: Spring lock · Ø bore: 4.2 mm

swiing® revival engine revision set (old model) | Puch E50

Manufacturer: NSK · Manufacturer: NTN · Manufacturer: swiing® revival parts · Number of components: 7 pcs · Area of application: Standard

GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Area of application: Tuning · Camouflaged: Yes · Surface: sandblasted · Width: 125 mm · Ø cylinder: 45 mm · Height: 55 mm · Total length: 135 mm · Number of fixing points: 4 pcs · Candle thread: short · Hole pattern [mm]: 44 x 44 · Decompressor: No

swiing® revival screw set Motor E50 Inox | Puch Maxi

Manufacturer: swiing® revival parts · Surface: stainless · Material: Chrome steel (colloquially known as stainless steel)

Athena 38 mm cylinder kit incl. diaphragm | Puch

Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 50 ccm · Nominal diameter: 38 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Thread inlet: M5x0.8 (standard thread) · Area of application: Tuning · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: No

Athena 22 mm intake manifold Diaphragm Dell'Orto PHBG | Puch

Manufacturer: Athena · Material: Aluminum · Ø inside: 22 mm · Number of fixing points: 4 pcs · Mounting type: Screws · Area of application: Tuning · Ø External connection: 26 mm · Hole pattern [mm]: 60 x 40

M8 sealing ring Fiber

Material: Fiber · Surface: raw · Place of use: Carburetor · Place of use: Motor housing · Ø inside: 8.3 mm · Ø outside: 13.7 mm · Area of application: Standard · Thickness: 1 mm · Puch OEM number: 26482

M10 sealing ring Fiber

Place of use: Carburetor · Place of use: Motor housing · Material: Fiber · Surface: raw · Thickness: 1.6 mm · Ø outside: 13.8 mm · Ø inside: 10 mm · Area of application: Standard · Pony OEM number: A1817 · Pony OEM number: A5650 · Puch OEM number: 27071 · Sachs OEM no.: 0250 042 001 · Sachs OEM no.: 0650 131 000

Adhesive set tank & frame yellow (1A quality) Foil plot | Puch Maxi S

Material: Polyvinyl chloride (PVC) · Surface: shiny · Color: yellow · Rear side texture: Adhesive · Consistency: UV-resistant · Consistency: petrol resistant · Place of use: Tank (+ frame)

Athena piston 38 mm #A | Puch

Manufacturer: Athena · Ø outside piston (A): 37.94 mm · Compression height (C): 22.5 mm · Curvature (D): 3.55 mm · Total piston height (E): 55 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Tolerance group: A · Weight piston kit: 76 g
