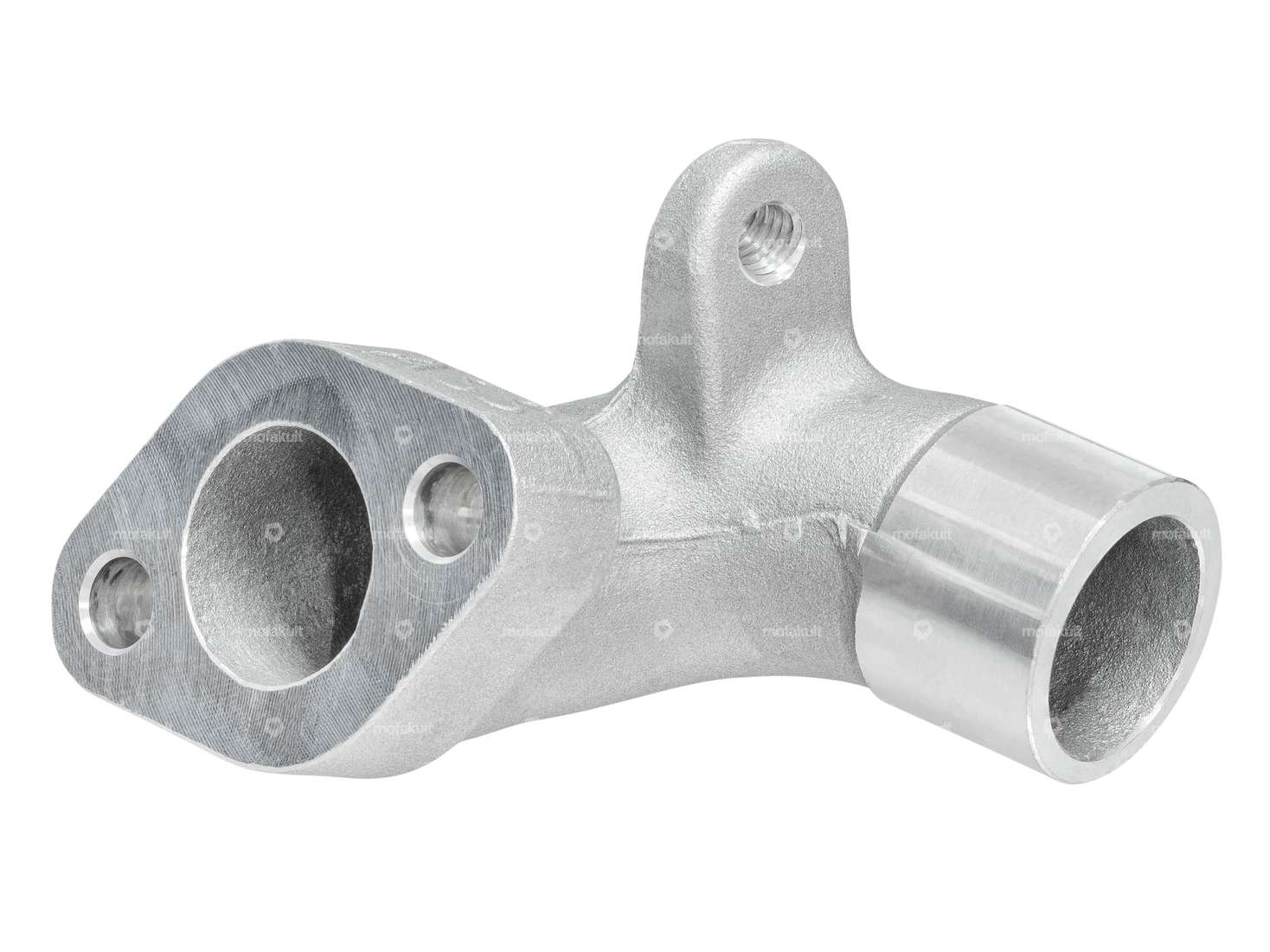

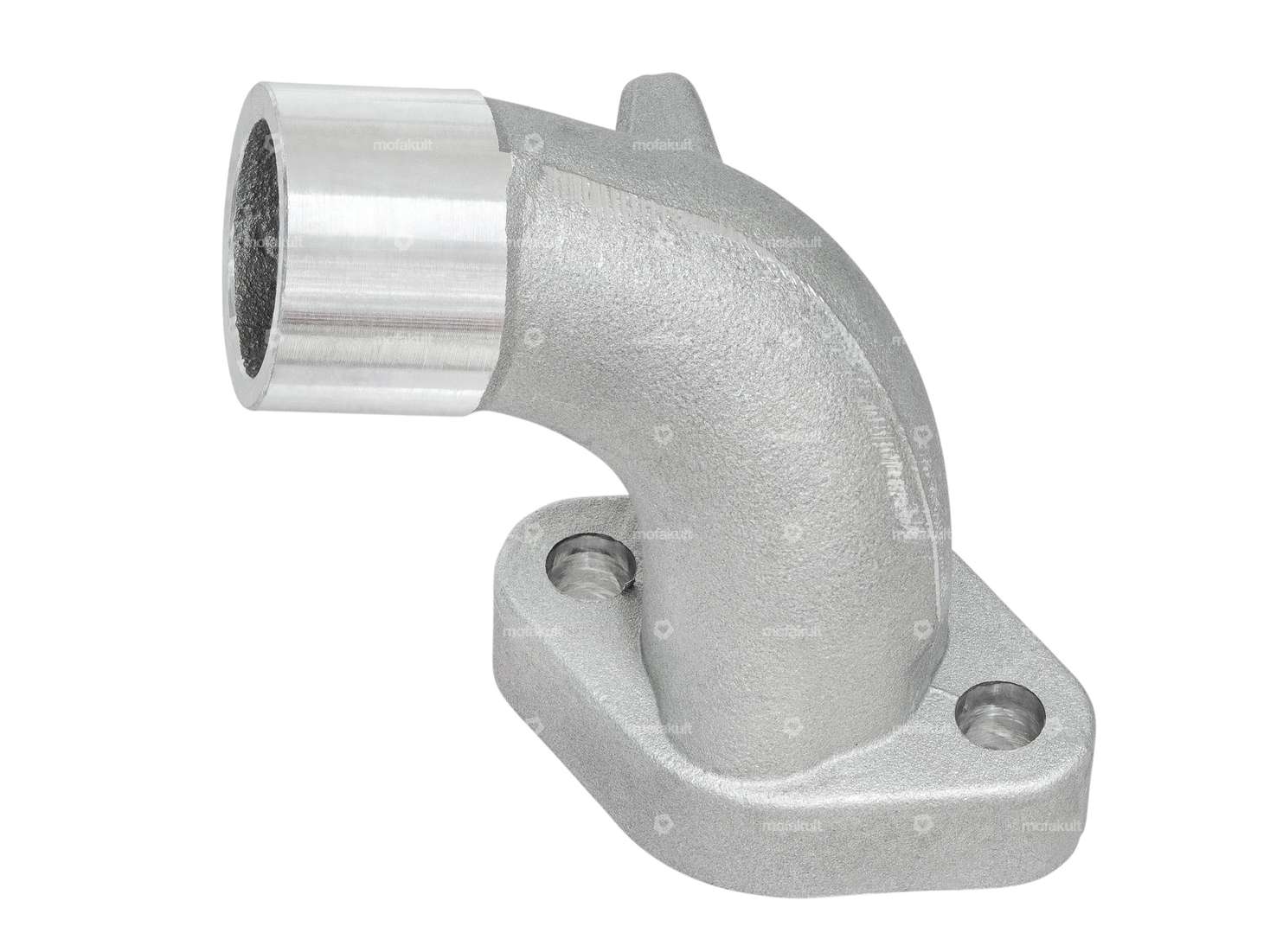

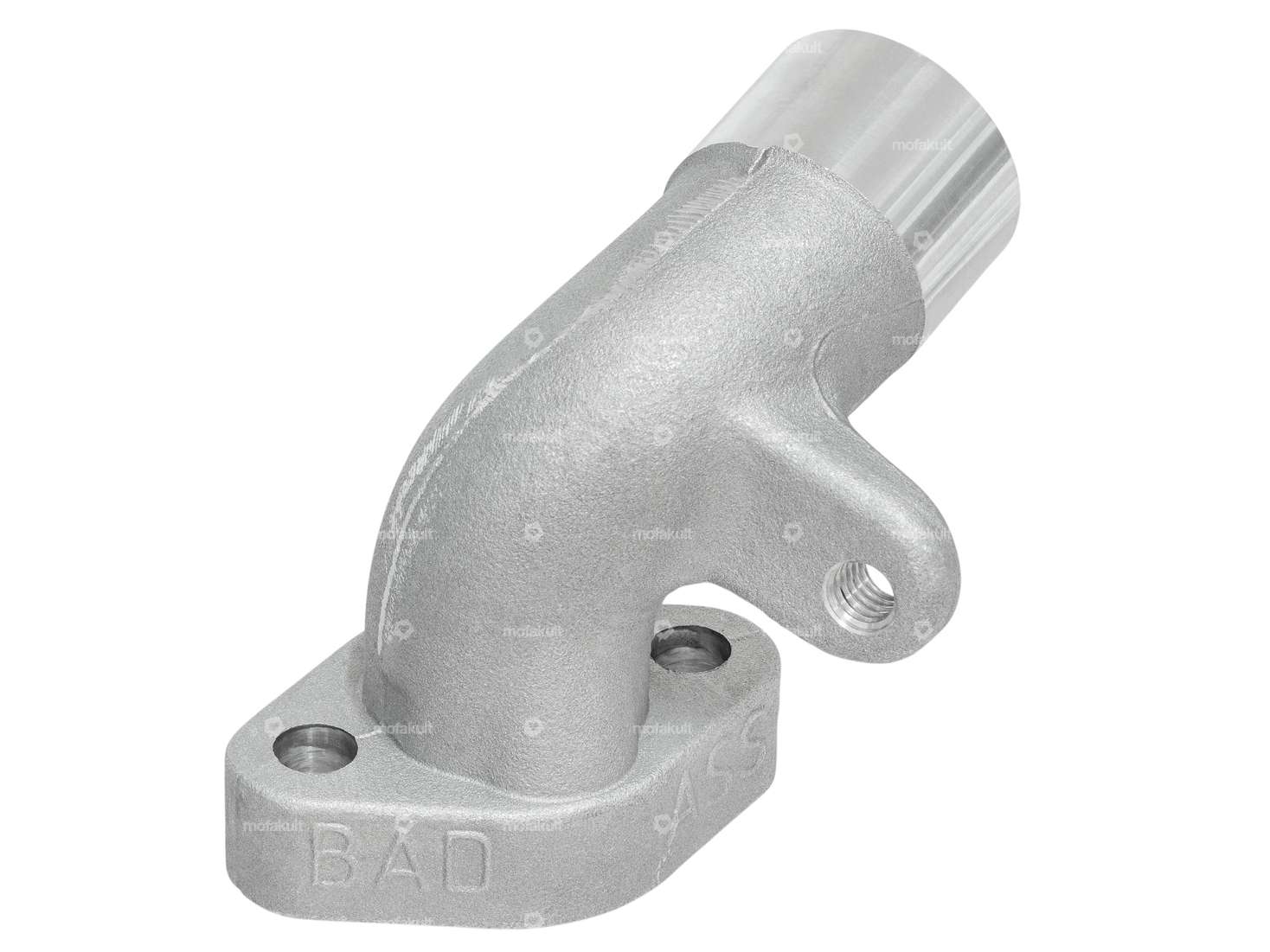

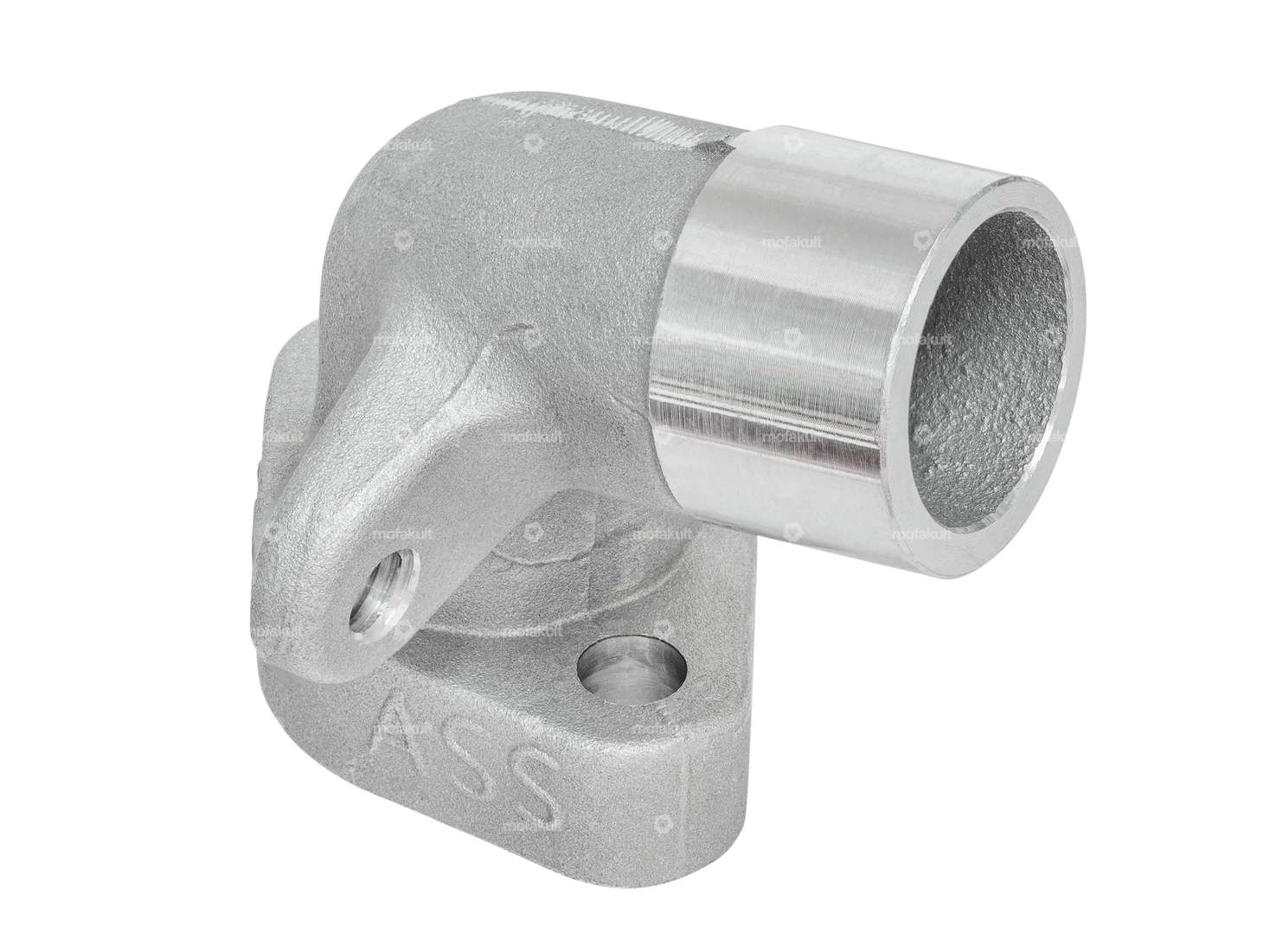

Short 50 mm intake manifold for hand-shifted Sachs 503 2AL and 2BL mopeds / mopeds.
This manifold is recommended in combination with the 41 mm BAD ASS Pandora tuning cylinder and makes it possible to fit a 17 mm Bing SRF or a Dell'Orto or GPO PHBG carburettor with the corresponding sleeve.
- Carburetor connection diameter: 23 mm
- Internal diameter: 17 mm throughout
- Hole spacing: 32 mm
- Threaded bracket: M6
To simplify installation, we recommend using M6 nuts with reduced key width. You can find these special nuts as well as the long 70 mm intake manifold or the sleeve for mounting PHBG carburetors in the accessories.
This is the tuning version of the original Sachs spare part with the number A2177.
Made by the brand BADASS.
Details
| Manufacturer | BAD ASS |
| Area of application | Tuning |
| Material | Aluminum |
| Ø inside | 17 mm |
| Thread type | M6x1 (standard thread) |
| Mounting type | Screws |
| Number of fixing points | 3 pcs |
| Hole spacing inlet | 32 mm |
| Total length | 54 mm |
| Height flange center hole | 45 mm |
| Total height | 56.5 mm |
| Ø External connection | 23 mm |
| Camouflaged | No |
Suitable for the following models
| Sachs | 503 - AAL, ABL, 2AL / 2BL |
Accessories & related products
Magura set screw M6x34 mm lock nut SW8
Manufacturer: Magura · Width across flats nut: 8 mm · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Ø cable holder: 3.05 mm · Thread type: M6x1 (standard thread) · Slotted: No · Ø Receptacle: 7.05 mm · Thread length: 24 mm · Width across flats Screw: 8 mm · Total length: 34 mm
EUR 2.95
GPO 17.5 mm PHBG AS carburetor hand choke (Dell'Orto replica)
Nominal diameter: 17.5 mm · Manufacturer: GPO · Area of application: Tuning · Material: Aluminum · Component group Carburetor: Carburetor complete · Color: black · Carburetor type: PHBG AS · Choke control: Hand choke · Width: 63 mm · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 5.3 mm · Ø fuel hose connection: 6 mm · Total length: 71.5 mm · Height: 130 mm · Ø without reducing sleeve: 26 mm · Nozzle size: 80 · Mounting type: Bride · Mounting type: Plug connection clamped · Ø Internal connection: 24 mm · Ø Air filter connection: 32 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Mixed oil connection: No · Vacuum connection: Yes · Choke nozzle size: 55 · Nozzle block: 262AU · Camouflaged: No · Size of secondary nozzle: 50
EUR 94.60
17 mm Bing SRF carburetor (replica)
Material: Aluminum · Component group Carburetor: Carburetor complete · Area of application: Tuning · Width: 64 mm · Nominal diameter: 17 mm · Carburetor type: SRF · Choke control: Hand choke · Total length: 78 mm · Nozzle thread: M4x0.7 (standard thread) · Ø fuel hose connection: 6 mm · Height: 117 mm · Ø Internal connection: 23 mm · Ø Air filter connection: 60 mm · Ø Air filter connection: 64 mm · Mixed oil connection: No · Mounting type: Plug connection clamped · Vacuum connection: No · Nozzle block: 2.xx · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m
EUR 76.80
swiing® revival special nut M6 SW8 (sprocket ref. back pedal / intake manifold)
Height: 6 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Nut type: Hexagon nut · Thread type: M6x1 (standard thread) · Width across flats SW: 8 mm
EUR 3.40
Bing "19 mm" SRF carburetor
Area of application: Tuning · Component group Carburetor: Carburetor complete · Nominal diameter: 17 mm · Carburetor type: SRF · Choke control: Hand choke · Nozzle thread: M4x0.7 (standard thread) · Ø fuel hose connection: 6 mm · Ø Inside entrance: 19 mm · Ø Internal connection: 23 mm · Ø Output inside: 19 mm · Ø Air filter connection: 60.2 mm · Mounting type: Plug connection clamped
EUR 100.50
swiing® ingenious 15 mm intake manifold long version | Sachs 503 2AL, 2BL
Manufacturer: swiing® ingenious parts · Area of application: Tuning · Material: Aluminum · Ø inside: 15 mm · Thread type: M6x1 (standard thread) · Mounting type: Screws · Number of fixing points: 2 pcs · Hole spacing inlet: 32 mm · Total length: 70 mm · Height flange center hole: 70 mm · Total height: 80 mm · Ø External connection: 20 mm · Camouflaged: No · Pony OEM number: A2176
EUR 70.90

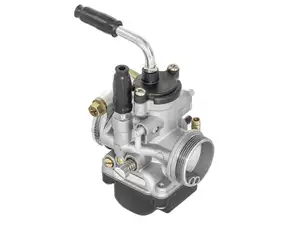

GPO 17.5 mm PHBG AD carburetor cable choke (Dell'Orto replica)
