Not so nice

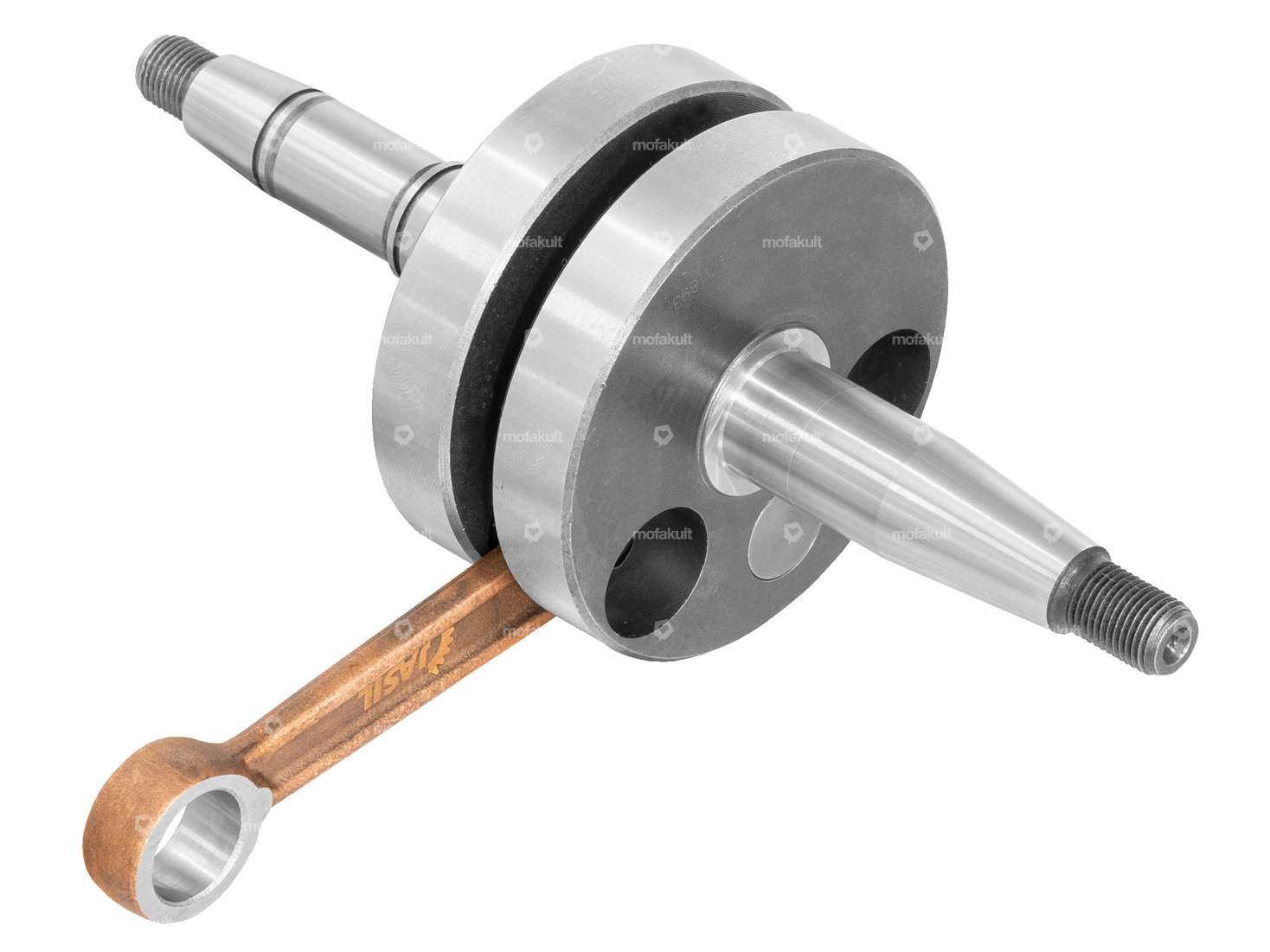

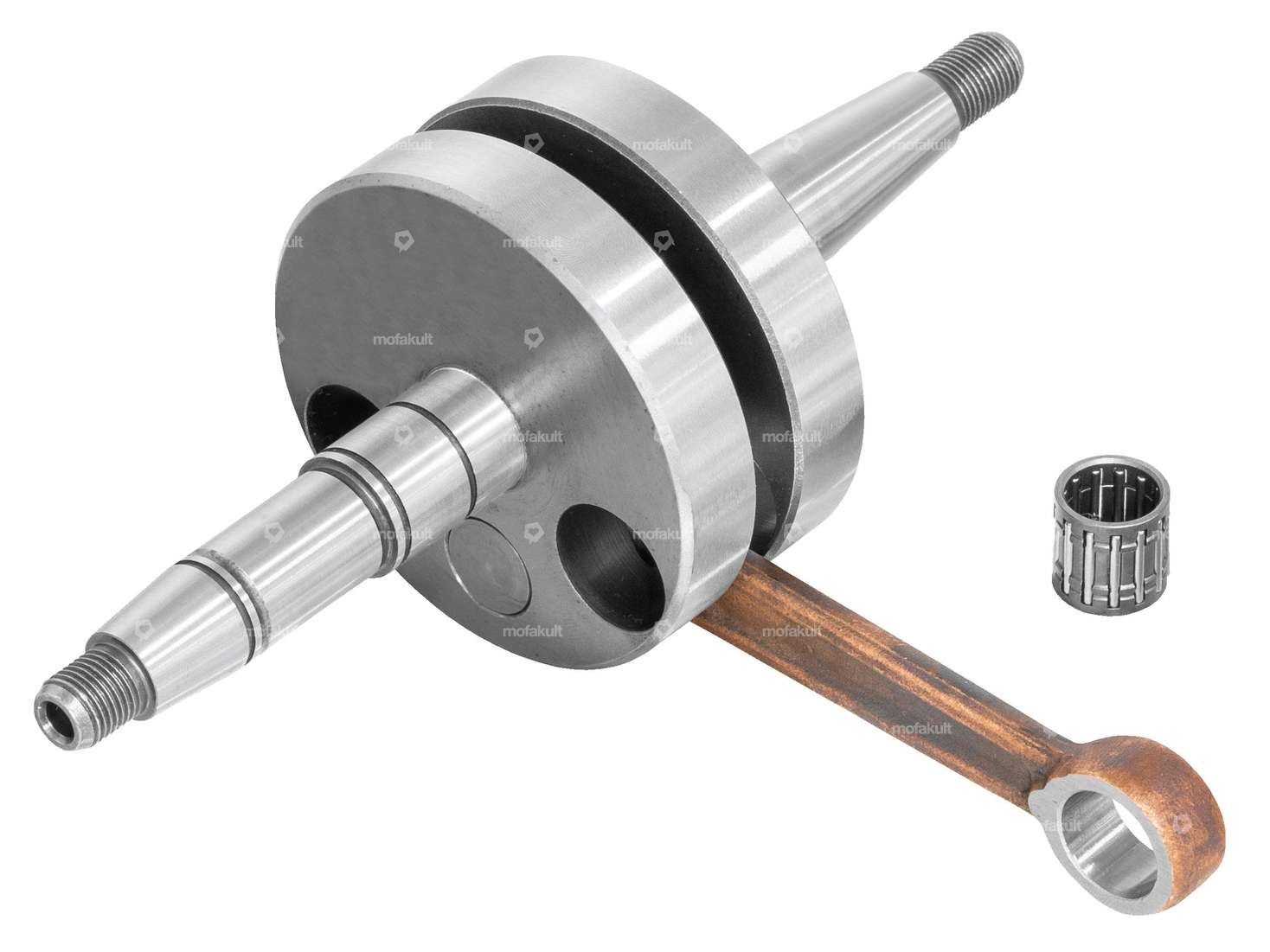

Full cheek shaft suitable for Puch Maxi S / N, as well as Supermaxi LG1 mopeds with a 1-speed E50 engine.
Mäsig-läsig! – We strive to offer you the widest range of moped spare parts. However, this product is of rather poor quality and is not recommended by us. Should you nevertheless choose this item, we understand, but cannot offer you any guarantee or exchange.
The connecting rod bearing may be too rough, which can lead to the lubricating film breaking off. This in turn can cause the connecting rod bearing to run hot.
High-quality alternatives such as our swiing crankshaft can be found in the accessories section.
Branded product from the Portuguese manufacturer Jasil under the Top Racing brand.
Details
| Weight | 942 g |
| Manufacturer | Jasil |
| Material | Steel |
| Cheek type | standard |
| Thread type | MF10x1 (fine pitch thread) |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 12 mm |
| Connecting rod length center-center | 90 mm |
| Total length of crankpin on clutch side | 74 mm |
| Number of gears | 1 pcs |
| Total length crankpin ignition side | 67 mm |
| Ø crank webs | 69.9 mm |
| Thread length | 11 mm, 15 mm |
| Area of application | Standard |
| Ø Connecting rod eye | 15 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Dimension needle bearing | 12 / 15 x 14.6 mm (axe 12) |
| Wide crank webs | 34.3 mm |
| Length 1st paragraph | 23.3 mm |
| Length 2nd paragraph | 25 mm |
| Ø 1st step (on the coupling side) | 17 mm |
| Ø 2nd shoulder (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 26.3 mm |
Suitable for the following models
| Puch | E50 |
Accessories & related products

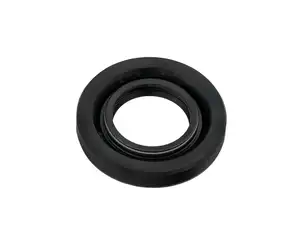

Oil seal NBR 22/40/7 A DUO crankshaft | Puch E50
Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 22 mm · Ø outside: 40 mm · Width: 7 mm · Manufacturer: Puch · Material: NBR · Surface: rubberized
EUR 6.85
Hot

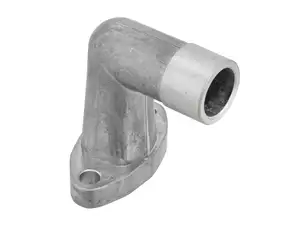

swiing® ingenious 15 mm intake manifold camouflaged | Puch E50
Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: Tuning · Ø inside: 15 mm · Ø External connection: 20 mm · Total length: 46 mm · Number of fixing points: 2 pcs · Mounting type: Screws · Total height: 53 mm · Height flange center hole: 43 mm · Camouflaged: Yes · Hole spacing inlet: 38 mm
EUR 40.60

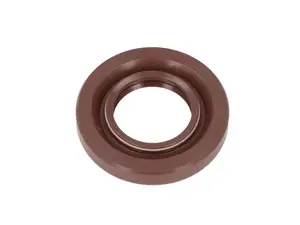

Oil seal FPM 22/40/7 A DUO crankshaft | Puch E50
Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 22 mm · Ø outside: 40 mm · Width: 7 mm · Manufacturer: Puch · Material: FPM - Fluororubber · Surface: rubberized
EUR 13.90

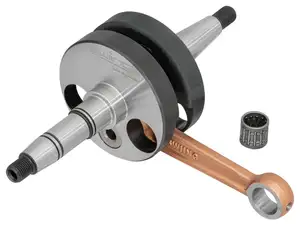

swiing® revival crankshaft standard (version 2.0) | Puch E50
Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread type: MF8x1 (fine pitch thread) · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 873 g · Number of gears: 1 pcs · Area of application: Standard
EUR 104.70
swiing® ingenious crankshaft set "High End" (+1 mm stroke) (Version 2.0) | Puch E50
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Cheek type: Full cheeks · Area of application: High End · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 44 mm · Ø piston pin (B): 12 mm · Connecting rod length center-center: 90 mm · Number of gears: 1 pcs · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Weight: 970 g · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34 mm
EUR 221.10
Not in stock

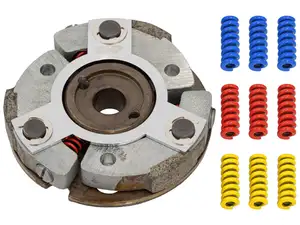

DMP clutch "Racing" aluminum reinforced | Puch E50
Manufacturer: DMP · Area of application: High End · Area of application: Performance · Area of application: Racing · Material: Steel · Area of application: Tuning · Material addition: Chrome steel (known as Nirosta®) · Ø outside: 94 mm · Recording type: Cone mounting · Number of jaws: 3 pcs · Thickness: 22 mm · Number of springs: 3 pcs
EUR 139.60
Moped fans like you also bought:
BERU spark plug connector / 1 kΩ interference suppressed
Ø cable: 5 mm · Ø cable: 7 mm · Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Component group Carburetor: Spraying · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00
EUR 10.20

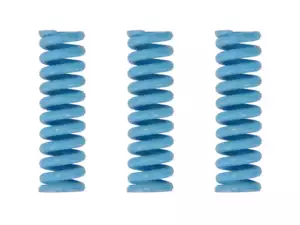

swiing® ingenious clutch springs reinforced (+20%) (Version 2.0) | Puch E50
Spring design: Pressure spring · Manufacturer: swiing® ingenious parts · Material: Spring steel · Area of application: Tuning · Color: blue · Surface: coated · Ø outside: 8.3 mm · Number of components: 3 pcs · Ø inside: 4.8 mm · Ø wire: 1.7 mm · Total length: 28 mm
EUR 20.80

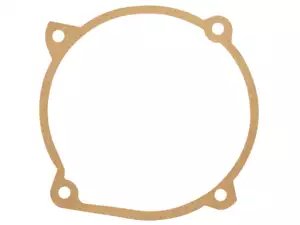

swiing® revival gasket gearbox cover engine 1 mm | Puch E50
